Schwarzfischer Hydraulik | Artikelnummer:
0 - 186140101

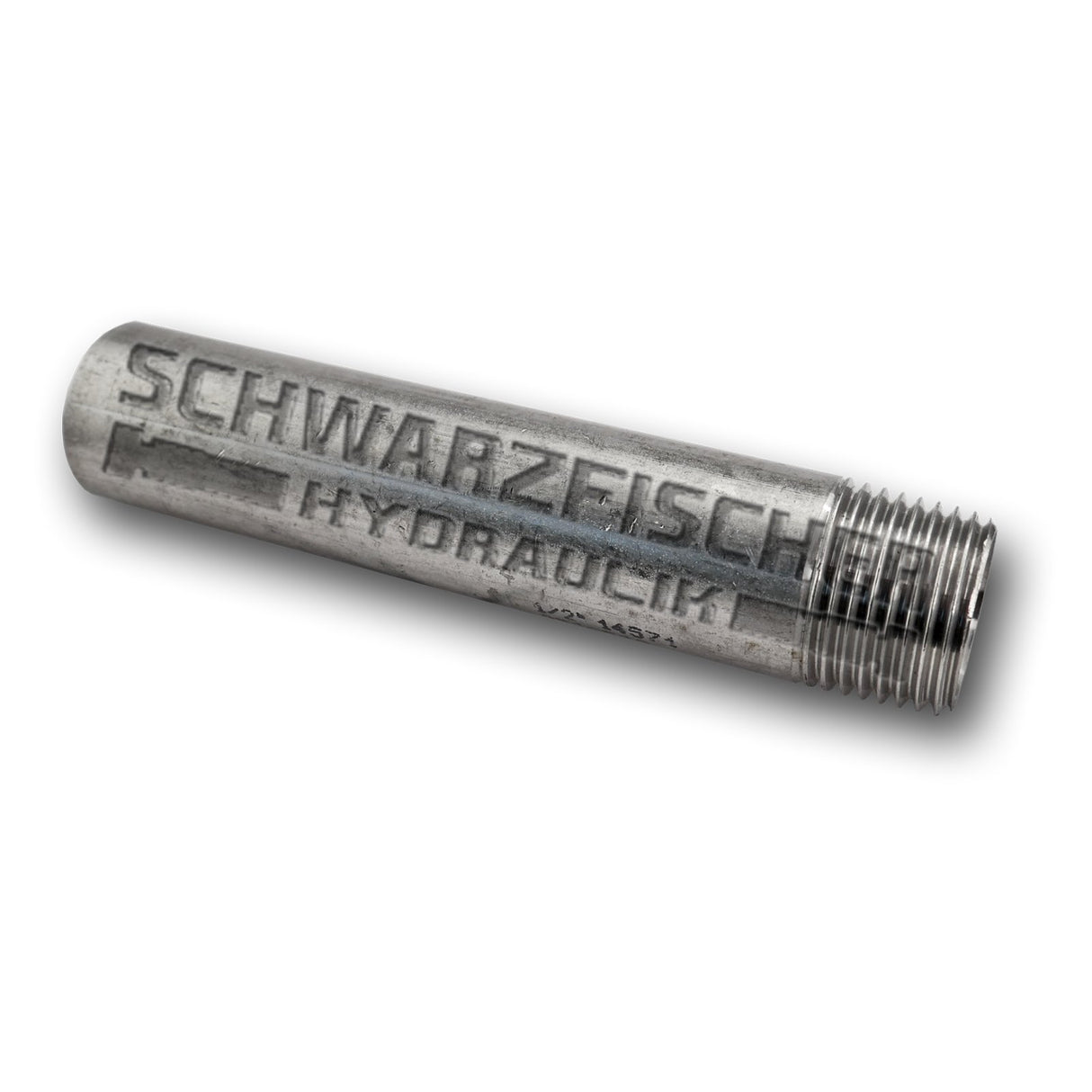

Rohrnippel zum Anschweißen in Edelstahl 1.4571
€6,40
Grundpreis
/
Variantenkonfiguration nicht möglich
inkl. MwSt.
Rohrnippel zum Anschweißen in Edelstahl 1.4571 - R 1/8" / 30mm (DIN Baulänge) / 10,2 mm (1|8") ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Lieferung und Versand
Lieferung und Versand
Ihre Bestellung wird generell so schnell wie möglich von uns bearbeitet.
Je nach Artikelstandort und Artikelmaße arbeiten wir mit verschiedenen Versanddienstleistern. Deswegen können wir leider keine Packstationen und Paketshop´s anliefern.
ähnlich EN 10241 / DIN 2982
Für weitere Technische Daten und Hinweise siehe Tabelle und Bilder
Rohrnippel zum Anschweißen in Edelstahl 1.4571
Ab
€2,88
Grundpreis
/
Variantenkonfiguration nicht möglich
| Artikelnummer | Werkstoff | Gewinde 1 | Länge | Durchmesser | PN | sonst. Info |
|---|---|---|---|---|---|---|
| 186140101 | Edelstahl 1.4571 | R 1/8" | 30 (DIN Baulänge) | 10,2 mm (1/8") | 20 bar | DIN-Baulänge |
| 186140102 | Edelstahl 1.4571 | R 1/8" | 40 | 10,2 mm (1/8") | 20 bar | - |
| 186140103 | Edelstahl 1.4571 | R 1/8" | 60 | 10,2 mm (1/8") | 20 bar | - |
| 186140104 | Edelstahl 1.4571 | R 1/8" | 80 | 10,2 mm (1/8") | 20 bar | - |
| 186140105 | Edelstahl 1.4571 | R 1/8" | 100 | 10,2 mm (1/8") | 20 bar | - |
| 186140106 | Edelstahl 1.4571 | R 1/4" | 30 (DIN Baulänge) | 13,5 mm (1/4") | 20 bar | DIN-Baulänge |
| 186140107 | Edelstahl 1.4571 | R 1/4" | 40 | 13,5 mm (1/4") | 20 bar | - |
| 186140108 | Edelstahl 1.4571 | R 1/4" | 60 | 13,5 mm (1/4") | 20 bar | - |
| 186140109 | Edelstahl 1.4571 | R 1/4" | 80 | 13,5 mm (1/4") | 20 bar | - |
| 186140110 | Edelstahl 1.4571 | R 1/4" | 100 | 13,5 mm (1/4") | 20 bar | - |
| 186140111 | Edelstahl 1.4571 | R 1/4" | 120 | 13,5 mm (1/4") | 20 bar | - |
| 186140112 | Edelstahl 1.4571 | R 1/4" | 160 | 13,5 mm (1/4") | 20 bar | - |
| 186140113 | Edelstahl 1.4571 | R 1/4" | 200 | 13,5 mm (1/4") | 20 bar | - |
| 186140114 | Edelstahl 1.4571 | R 3/8" | 30 (DIN Baulänge) | 17,2 mm (3/8") | 20 bar | DIN-Baulänge |
| 186140115 | Edelstahl 1.4571 | R 3/8" | 40 | 17,2 mm (3/8") | 20 bar | - |
| 186140116 | Edelstahl 1.4571 | R 3/8" | 60 | 17,2 mm (3/8") | 20 bar | - |
| 186140117 | Edelstahl 1.4571 | R 3/8" | 80 | 17,2 mm (3/8") | 20 bar | - |
| 186140118 | Edelstahl 1.4571 | R 3/8" | 100 | 17,2 mm (3/8") | 20 bar | - |
| 186140119 | Edelstahl 1.4571 | R 3/8" | 120 | 17,2 mm (3/8") | 20 bar | - |
| 186140120 | Edelstahl 1.4571 | R 3/8" | 350 | 17,2 mm (3/8") | 20 bar | - |
| 186140121 | Edelstahl 1.4571 | R 1/2" | 35 (DIN Baulänge) | 21,3 mm (1/2") | 20 bar | DIN-Baulänge |
| 186140122 | Edelstahl 1.4571 | R 1/2" | 40 | 21,3 mm (1/2") | 20 bar | - |
| 186140123 | Edelstahl 1.4571 | R 1/2" | 60 | 21,3 mm (1/2") | 20 bar | - |
| 186140124 | Edelstahl 1.4571 | R 1/2" | 80 | 21,3 mm (1/2") | 20 bar | - |
| 186140125 | Edelstahl 1.4571 | R 1/2" | 100 | 21,3 mm (1/2") | 20 bar | - |
| 186140126 | Edelstahl 1.4571 | R 1/2" | 120 | 21,3 mm (1/2") | 20 bar | - |
| 186140127 | Edelstahl 1.4571 | R 3/4" | 30 (DIN Baulänge) | 26,9 mm (3/4") | 20 bar | DIN-Baulänge |
| 186140128 | Edelstahl 1.4571 | R 3/4" | 40 | 26,9 mm (3/4") | 20 bar | - |
| 186140129 | Edelstahl 1.4571 | R 3/4" | 60 | 26,9 mm (3/4") | 20 bar | - |
| 186140130 | Edelstahl 1.4571 | R 3/4" | 80 | 26,9 mm (3/4") | 20 bar | - |
| 186140131 | Edelstahl 1.4571 | R 3/4" | 100 | 26,9 mm (3/4") | 20 bar | - |
| 186140132 | Edelstahl 1.4571 | R 3/4" | 120 | 26,9 mm (3/4") | 20 bar | - |
| 186140133 | Edelstahl 1.4571 | R 3/4" | 200 | 26,9 mm (3/4") | 20 bar | - |
| 186140134 | Edelstahl 1.4571 | R 1" | 40 (DIN Baulänge) | 33,7 mm (1") | 20 bar | DIN-Baulänge |
| 186140135 | Edelstahl 1.4571 | R 1" | 60 | 33,7 mm (1") | 20 bar | - |
| 186140136 | Edelstahl 1.4571 | R 1" | 80 | 33,7 mm (1") | 20 bar | - |
| 186140137 | Edelstahl 1.4571 | R 1" | 100 | 33,7 mm (1") | 20 bar | - |
| 186140138 | Edelstahl 1.4571 | R 1" | 120 | 33,7 mm (1") | 20 bar | - |
| 186140139 | Edelstahl 1.4571 | R 1 1/4" | 50 (DIN Baulänge) | 42,4 mm (1 1/4") | 20 bar | DIN-Baulänge |
| 186140140 | Edelstahl 1.4571 | R 1 1/4" | 60 | 42,4 mm (1 1/4") | 20 bar | - |
| 186140141 | Edelstahl 1.4571 | R 1 1/4" | 80 | 42,4 mm (1 1/4") | 20 bar | - |
| 186140142 | Edelstahl 1.4571 | R 1 1/4" | 100 | 42,4 mm (1 1/4") | 20 bar | - |
| 186140143 | Edelstahl 1.4571 | R 1 1/4" | 120 | 42,4 mm (1 1/4") | 20 bar | - |
| 186140144 | Edelstahl 1.4571 | R 1 1/4" | 130 | 42,4 mm (1 1/4") | 20 bar | - |
| 186140145 | Edelstahl 1.4571 | R 1 1/2" | 50 (DIN Baulänge) | 48,3 mm (1 1/2") | 20 bar | DIN-Baulänge |
| 186140146 | Edelstahl 1.4571 | R 1 1/2" | 60 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140147 | Edelstahl 1.4571 | R 1 1/2" | 80 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140148 | Edelstahl 1.4571 | R 1 1/2" | 100 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140149 | Edelstahl 1.4571 | R 1 1/2" | 120 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140150 | Edelstahl 1.4571 | R 1 1/2" | 150 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140151 | Edelstahl 1.4571 | R 1 1/2" | 300 | 48,3 mm (1 1/2") | 20 bar | - |
| 186140152 | Edelstahl 1.4571 | R 2" | 50 (DIN Baulänge) | 60,3 mm (2") | 20 bar | DIN-Baulänge |
| 186140153 | Edelstahl 1.4571 | R 2" | 60 | 60,3 mm (2") | 20 bar | - |
| 186140154 | Edelstahl 1.4571 | R 2" | 80 | 60,3 mm (2") | 20 bar | - |
| 186140155 | Edelstahl 1.4571 | R 2" | 100 | 60,3 mm (2") | 20 bar | - |
| 186140156 | Edelstahl 1.4571 | R 2" | 120 | 60,3 mm (2") | 20 bar | - |
| 186140157 | Edelstahl 1.4571 | R 2" | 200 | 60,3 mm (2") | 20 bar | - |
| 186140158 | Edelstahl 1.4571 | R 2" | 200 | 60,3 mm (2") | 20 bar | - |
| 186140159 | Edelstahl 1.4571 | R 2 1/2" | 50 (DIN Baulänge) | 76,1 mm (2 1/2") | 20 bar | DIN-Baulänge |
| 186140160 | Edelstahl 1.4571 | R 2 1/2" | 60 | 76,1 mm (2 1/2") | 20 bar | - |
| 186140161 | Edelstahl 1.4571 | R 2 1/2" | 80 | 76,1 mm (2 1/2") | 20 bar | - |
| 186140162 | Edelstahl 1.4571 | R 2 1/2" | 100 | 76,1 mm (2 1/2") | 20 bar | - |
| 186140163 | Edelstahl 1.4571 | R 2 1/2" | 120 | 76,1 mm (2 1/2") | 20 bar | - |
| 186140164 | Edelstahl 1.4571 | R 2 1/2" | 170 | 76,1 mm (2 1/2") | 20 bar | - |
| 186140165 | Edelstahl 1.4571 | R 3" | 50 (DIN Baulänge) | 88,9 mm (3") | 20 bar | DIN-Baulänge |
| 186140166 | Edelstahl 1.4571 | R 3" | 60 | 88,9 mm (3") | 20 bar | - |
| 186140167 | Edelstahl 1.4571 | R 3" | 70 | 88,9 mm (3") | 20 bar | - |
| 186140168 | Edelstahl 1.4571 | R 3" | 80 | 88,9 mm (3") | 20 bar | - |
| 186140169 | Edelstahl 1.4571 | R 3" | 100 | 88,9 mm (3") | 20 bar | - |
| 186140170 | Edelstahl 1.4571 | R 3" | 120 | 88,9 mm (3") | 20 bar | - |
| 186140171 | Edelstahl 1.4571 | R 4" | 50 (DIN Baulänge) | 114,3 mm (4") | 20 bar | DIN-Baulänge |
| 186140172 | Edelstahl 1.4571 | R 4" | 60 | 114,3 mm (4") | 20 bar | - |
| 186140173 | Edelstahl 1.4571 | R 4" | 80 | 114,3 mm (4") | 20 bar | - |
| 186140174 | Edelstahl 1.4571 | R 4" | 100 | 114,3 mm (4") | 20 bar | - |
| 186140175 | Edelstahl 1.4571 | R 4" | 120 | 114,3 mm (4") | 20 bar | - |
| 186141101 | Stahl schwarz | R 1/4" | 30 (DIN Baulänge) | 13,5 mm (1/4") | 50 bar | DIN-Baulänge |
| 186141102 | Stahl schwarz | R 1/4" | 40 | 13,5 mm (1/4") | 50 bar | - |
| 186141103 | Stahl schwarz | R 1/4" | 60 | 13,5 mm (1/4") | 50 bar | - |
| 186141104 | Stahl schwarz | R 1/4" | 80 | 13,5 mm (1/4") | 50 bar | - |
| 186141105 | Stahl schwarz | R 1/4" | 100 | 13,5 mm (1/4") | 50 bar | - |
| 186141106 | Stahl schwarz | R 1/4" | 120 | 13,5 mm (1/4") | 50 bar | - |
| 186141107 | Stahl schwarz | R 1/4" | 160 | 13,5 mm (1/4") | 50 bar | - |
| 186141108 | Stahl schwarz | R 1/4" | 200 | 13,5 mm (1/4") | 50 bar | - |
| 186141109 | Stahl schwarz | R 3/8" | 30 (DIN Baulänge) | 17,2 mm (3/8") | 50 bar | DIN-Baulänge |
| 186141110 | Stahl schwarz | R 3/8" | 40 | 17,2 mm (3/8") | 50 bar | - |
| 186141111 | Stahl schwarz | R 3/8" | 60 | 17,2 mm (3/8") | 50 bar | - |
| 186141112 | Stahl schwarz | R 3/8" | 80 | 17,2 mm (3/8") | 50 bar | - |
| 186141113 | Stahl schwarz | R 3/8" | 100 | 17,2 mm (3/8") | 50 bar | - |
| 186141114 | Stahl schwarz | R 3/8" | 120 | 17,2 mm (3/8") | 50 bar | - |
| 186141115 | Stahl schwarz | R 3/8" | 350 | 17,2 mm (3/8") | 50 bar | - |
| 186141116 | Stahl schwarz | R 1/2" | 35 (DIN Baulänge) | 21,3 mm (1/2") | 50 bar | DIN-Baulänge |
| 186141117 | Stahl schwarz | R 1/2" | 40 | 21,3 mm (1/2") | 50 bar | - |
| 186141118 | Stahl schwarz | R 1/2" | 60 | 21,3 mm (1/2") | 50 bar | - |
| 186141119 | Stahl schwarz | R 1/2" | 80 | 21,3 mm (1/2") | 50 bar | - |
| 186141120 | Stahl schwarz | R 1/2" | 100 | 21,3 mm (1/2") | 50 bar | - |
| 186141121 | Stahl schwarz | R 1/2" | 120 | 21,3 mm (1/2") | 50 bar | - |
| 186141122 | Stahl schwarz | R 3/4" | 30 (DIN Baulänge) | 26,9 mm (3/4") | 50 bar | DIN-Baulänge |
| 186141123 | Stahl schwarz | R 3/4" | 40 | 26,9 mm (3/4") | 50 bar | - |
| 186141124 | Stahl schwarz | R 3/4" | 60 | 26,9 mm (3/4") | 50 bar | - |
| 186141125 | Stahl schwarz | R 3/4" | 80 | 26,9 mm (3/4") | 50 bar | - |
| 186141126 | Stahl schwarz | R 3/4" | 100 | 26,9 mm (3/4") | 50 bar | - |
| 186141127 | Stahl schwarz | R 3/4" | 120 | 26,9 mm (3/4") | 50 bar | - |
| 186141128 | Stahl schwarz | R 3/4" | 200 | 26,9 mm (3/4") | 50 bar | - |
| 186141129 | Stahl schwarz | R 1" | 40 (DIN Baulänge) | 33,7 mm (1") | 50 bar | DIN-Baulänge |
| 186141130 | Stahl schwarz | R 1" | 60 | 33,7 mm (1") | 50 bar | - |
| 186141131 | Stahl schwarz | R 1" | 80 | 33,7 mm (1") | 50 bar | - |
| 186141132 | Stahl schwarz | R 1" | 100 | 33,7 mm (1") | 50 bar | - |
| 186141133 | Stahl schwarz | R 1" | 120 | 33,7 mm (1") | 50 bar | - |
| 186141134 | Stahl schwarz | R 1 1/4" | 50 (DIN Baulänge) | 42,4 mm (1 1/4") | 50 bar | DIN-Baulänge |
| 186141135 | Stahl schwarz | R 1 1/4" | 60 | 42,4 mm (1 1/4") | 50 bar | - |
| 186141136 | Stahl schwarz | R 1 1/4" | 80 | 42,4 mm (1 1/4") | 50 bar | - |
| 186141137 | Stahl schwarz | R 1 1/4" | 100 | 42,4 mm (1 1/4") | 50 bar | - |
| 186141138 | Stahl schwarz | R 1 1/4" | 120 | 42,4 mm (1 1/4") | 50 bar | - |
| 186141139 | Stahl schwarz | R 1 1/4" | 130 | 42,4 mm (1 1/4") | 50 bar | - |
| 186141140 | Stahl schwarz | R 1 1/2" | 50 (DIN Baulänge) | 48,3 mm (1 1/2") | 50 bar | DIN-Baulänge |
| 186141141 | Stahl schwarz | R 1 1/2" | 60 | 48,3 mm (1 1/2") | 50 bar | - |
| 186141142 | Stahl schwarz | R 1 1/2" | 80 | 48,3 mm (1 1/2") | 50 bar | - |
| 186141143 | Stahl schwarz | R 1 1/2" | 100 | 48,3 mm (1 1/2") | 50 bar | - |
| 186141144 | Stahl schwarz | R 1 1/2" | 120 | 48,3 mm (1 1/2") | 50 bar | - |
| 186141145 | Stahl schwarz | R 2" | 50 (DIN Baulänge) | 60,3 mm (2") | 50 bar | DIN-Baulänge |
| 186141146 | Stahl schwarz | R 2" | 60 | 60,3 mm (2") | 50 bar | - |
| 186141147 | Stahl schwarz | R 2" | 80 | 60,3 mm (2") | 50 bar | - |
| 186141148 | Stahl schwarz | R 2" | 100 | 60,3 mm (2") | 50 bar | - |
| 186141149 | Stahl schwarz | R 2" | 120 | 60,3 mm (2") | 50 bar | - |
| 186141150 | Stahl schwarz | R 2" | 200 | 60,3 mm (2") | 50 bar | - |
| 186141151 | Stahl schwarz | R 2 1/2" | 50 (DIN Baulänge) | 76,1 mm (2 1/2") | 50 bar | DIN-Baulänge |
| 186141152 | Stahl schwarz | R 2 1/2" | 60 | 76,1 mm (2 1/2") | 50 bar | - |
| 186141153 | Stahl schwarz | R 2 1/2" | 80 | 76,1 mm (2 1/2") | 50 bar | - |
| 186141154 | Stahl schwarz | R 2 1/2" | 100 | 76,1 mm (2 1/2") | 50 bar | - |
| 186141155 | Stahl schwarz | R 2 1/2" | 120 | 76,1 mm (2 1/2") | 50 bar | - |
| 186141156 | Stahl schwarz | R 2 1/2" | 170 | 76,1 mm (2 1/2") | 50 bar | - |
| 186141157 | Stahl schwarz | R 3" | 50 (DIN Baulänge) | 88,9 mm (3") | 50 bar | DIN-Baulänge |
| 186141158 | Stahl schwarz | R 3" | 60 | 88,9 mm (3") | 50 bar | - |
| 186141159 | Stahl schwarz | R 3" | 70 | 88,9 mm (3") | 50 bar | - |
| 186141160 | Stahl schwarz | R 3" | 80 | 88,9 mm (3") | 50 bar | - |
| 186141161 | Stahl schwarz | R 3" | 100 | 88,9 mm (3") | 50 bar | - |
| 186141162 | Stahl schwarz | R 3" | 120 | 88,9 mm (3") | 50 bar | - |
| 186141163 | Stahl schwarz | R 4" | 50 (DIN Baulänge) | 114,3 mm (4") | 50 bar | DIN-Baulänge |
| 186141164 | Stahl schwarz | R 4" | 60 | 114,3 mm (4") | 50 bar | - |
| 186141165 | Stahl schwarz | R 4" | 80 | 114,3 mm (4") | 50 bar | - |
| 186141166 | Stahl schwarz | R 4" | 100 | 114,3 mm (4") | 50 bar | - |
| 186141167 | Stahl schwarz | R 4" | 120 | 114,3 mm (4") | 50 bar | - | "
